Gas station level gauge
Gas station level gauge consist of SYW-A magnetostrictive probe and touch control console (TCM-1,TCC-2,TCC-3).
SYW-A magnetostrictive probe installed in the tank,take the magnetostrictive technology,can accurately measure the inner tank oil level ,water level and multiple temperature;
Touch control console installed in the control room, it can automatically probe data acquisition and processing, real-time display can tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.
SYW-A Magnetostrictive Probe
●The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
●Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±0.3mm
Stability: strong anti-jamming ability
Efficiency: less than 1 second to test one tank.
●Probe Performance
| Item | SYW-A |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Certificate | PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±0.3mm |
| Water Level Accuracy | ±0.3mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Environmental Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Probe Length | 600~3500mm |
| Method of Communication | RS-485 |
| Probe Material | 1Cr18Ni9Ti |
| Power Supply | +24～26VDC |
| Protection Class of Probe Canister | IP67 |
| Max Communication Distance | 1200m |
TCM-1 Touch Control Console
●It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.
●It can display product level, water level, temperature, volume, ullage.
●It enjoys a tank tilt compensation function.
●It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.
●It features an audible and visual alarm function with front panel.
●It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.
●It enjoys a record function, all information are stored in memory for future queries
●There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.
●It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.
●After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.
●It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..
●It can connect with flow-meter to display delivery information constantly.

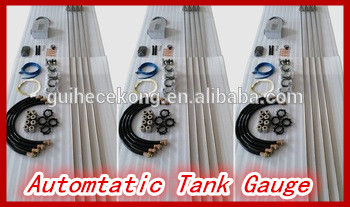

Picture :
|
|
